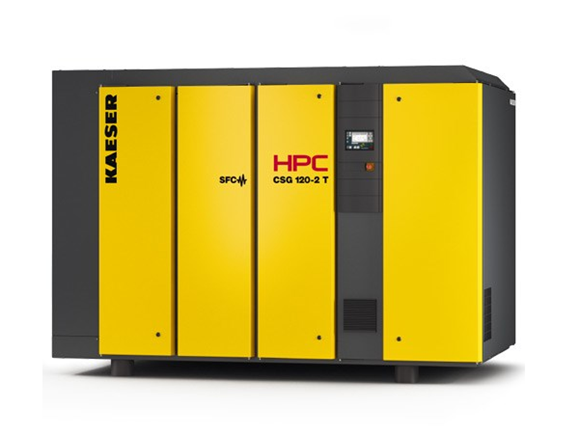

CSG 120-2 SFC

CSG-2 A Series - Air Cooled Oil Free Rotary Screw Compressors c/w SFC Options

Complete unit

  • CSG-2 A Series model options - 37kW / 45kW / 55kW / 75kW / 90kW
  • Ready for operation
  • Fully automatic
  • Silenced
  • Vibration-damped
  • Service-friendly design
  • For ambient temperatures up to +45 °C

Airend

  • Two-stage, dry compression rotary screw compressor with precision gearing as per AGMA Q13/DIN- 5
  • 2nd compression stage uses stainless steel rotors and jacket cooling
  • Rotors feature durable coating
  • Integrated oil tank with oil tank ventilation
  • Fibre-free pulse dampers downstream of both compression stages

Drive motor

  • Internationally renowned SIEMENS manufacture
  • Premium and Super Premium Efficiency Motor
  • Continuous monitoring of motor winding temperature
  • Enclosure protection: IP 55

Cooling

  • Generously dimensioned compressed air aftercooler combinations comprising stainless steel precooler and aluminium cooler
  • Reliable compressor performance up to 45 °C
  • Aluminium cooler for gear oil

Electrical components

  • Control cabinet to IP 54
  • Switching cabinet ventilation
  • Automatic star-delta protection combination
  • Control transformer






SIGMA CONTROL 2

  • Plain text display
  • 30 selectable languages
  • Soft-touch keys with icons
  • Traffic-light LEDs for at-a-glance operational status
  • Fully automatic monitoring and control
  • Dual, Quadro, Vario and Continuous control modes available as standard options
  • Interfaces: Ethernet
  • Optional communication modules for Profibus DP, Modbus, Profinet and DeviceNet
  • SD-card slot for data logging and updates
  • RFID reader
  • Web server

}
