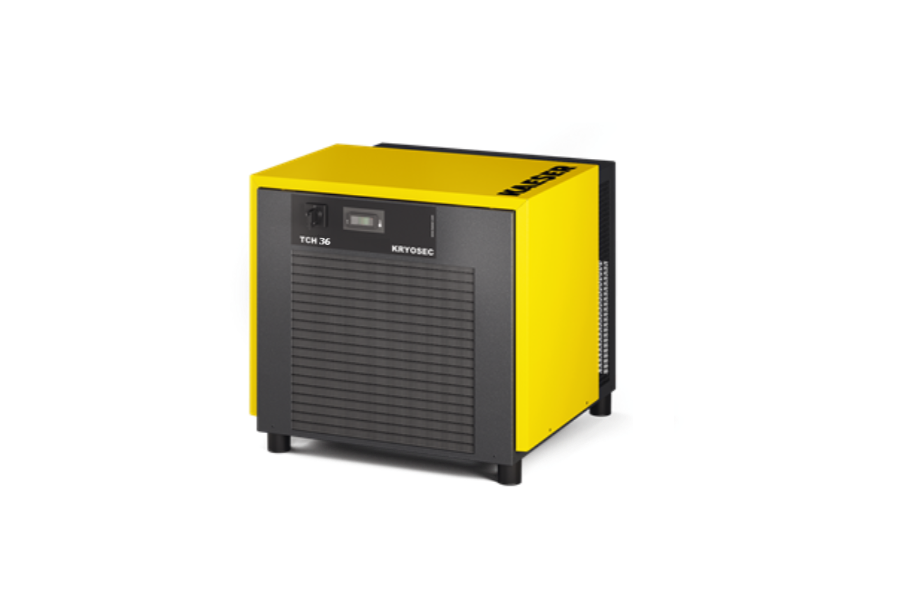

The quality of a refrigeration dryer is best judged by how effectively and reliably it can separate condensate, particularly at high ambient temperatures. With this in mind, the developers at HPC KAESER created the TAH-TCH refrigeration dryer series. Featuring highly efficient refrigeration circuits and HPC KAESER developed hot-gas bypass regulators, these dryers are designed for optimum performance. The air circulating system for the corrosion resistant stainless steel plate heat exchanger further illustrates this, as it is made from stainless steel and copper piping.
The key aim of any refrigeration dryer is to provide reliable condensate separation, which is why HPC KAESER use a separate stainless steel condensate separator. This configuration is far superior to systems using integrated solutions as it achieves better condensate separation and is more reliable. TAH / TBH / TCH Series refrigeration dryers combine all of these features within a robust powder-coated metal casing to provide exceptional air treatment in accordance with EN 60204-1, which means dependable, sustained pressure dew point performance of +3ºC even at high ambient temperatures up to +45ºC.
Hermetically-sealed refrigeration circuit comprising a reciprocating compressor, fan / condenser assembly, fi lter / dryer, capillary tube, insulated air / air and air / refrigerant heat exchanger with integrated copper brazed, stainless steel condensate separator and hot-gas bypass regulator.
Electronically controlled ECO-DRAIN 30 condensate drain with ball valve at the condensate inlet, cold surfaces insulated.
Electrical equipment and displays
Mechanical dew point trend indicator. Electrical equipment compliant with EN 60204-1: lockable main switch with integrated power supply disconnecting device.
Powder coated enclosure with removable hood and machine mountings. Wall-mount ready (TAH series only).
Delivered with strain-relieved power supply cable (without plug), internally wired. Bulkhead pipe fi tting to connect the external condensate line.
Includes operating instructions and CE declaration of conformity (EU version).
