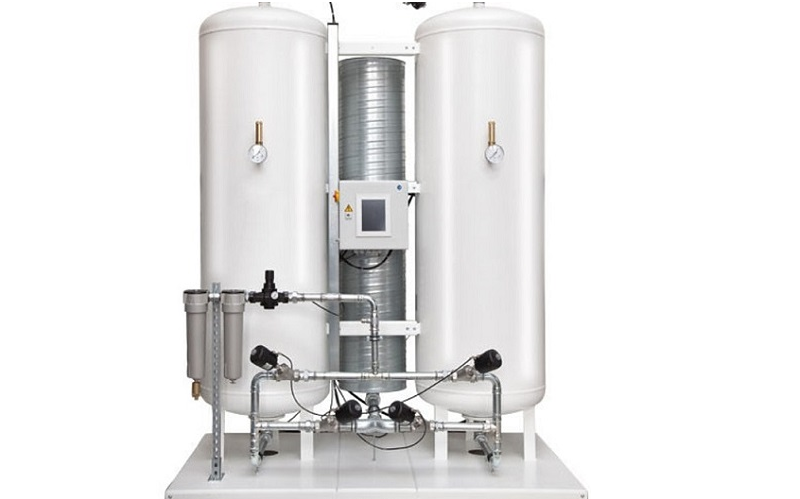

KSI ECOTROC® GEO2 Series Oxygen Generator

KSI oxygen generators of the ECOTROC® GEO2 series use the adsorption process to separate oxygen molecules from the nitrogen molecules from the compressed air supplied. The resulting high quality oxygen is ready for use in a wide variety of systems. With the COMFORT and PREMIUM series, KSI Filtertechnik offers the right device for every requirement. Oxygen purities from 90.0% up to 99.5% and volume flows (depending on design) from 0.5 m3/h up to 335.0 m3/h are possible.

KSI oxygen generators are able to produce high-quality oxygen in an energy-efficient and thus cost-effective manner.

ECOTROC® GEO2 COMFORT

KSI oxygen generators of the ECOTROC® GEO2 COMFORT  series use the adsorption process to separate the nitrogen molecules from the oxygen molecules in the supplied compressed air. The resulting high quality oxygen is now ready to be used in a wide variety of systems. The COMFORT series is able to produce oxygen with a purity of 90% to 93% in an energy-efficient and thus cost-effective way. Depending on the design of the device, a delivery quantity of 0.6 m3/h up to 12.9 m3/h can be achieved.

The features of this KSI product include the clever design, which allows plug & play installation. The continuous measurement of oxygen purity ensures consistent quality. Design measures and the use of quality components ensure low-maintenance operation.

ECOTROC® GEO2 PREMIUM

In the KSI oxygen generators of the ECOTROC® GEO2 PREMIUM series, the compressed air is first cleaned of impurities such as moisture, oil vapours, particles and hydrocarbons by means of the standard protective filtration. The zeolites, a synthetic crystalline aluminium silicate, then adsorb the nitrogen and carbon dioxide molecules in the two molecular sieve beds from the now purified compressed air.
The remaining oxygen molecules flow into the product container. In order to ensure the oxygen flow, the two sieves switch alternately from adsorption mode to regeneration mode.
With this process, a purity of 90% to 99.5% (high purity) can be achieved. High-purity systems only on request. The volume flow available is between 0.5 m3/h and 335 m3/h, depending on the design of the unit.

Special features of the PREMIUM series include the standard touch control panel, which clearly presents all available measured values. A special feature of this control is the remote control function: all information can be displayed on any PC or iPad or internet-ready device. Alternatively, the control unit has Modbus, Profibus, GSM and VMC interfaces.
Thus the PREMIUM series is equipped with the most modern control technology and allows a safe and comfortable operation.

In order to tailor the system to your individual requirements, we offer the possibility of integrating redundant systems, modular extensions and high-pressure variants.




}
