Product Information

DSG-2 Series

Please contact us today for more information:

01376 500595 (Essex & East London Office)
01707 376699 (Hertfordshire, North & West London Office)

sales@chelmerpneumatics.co.uk

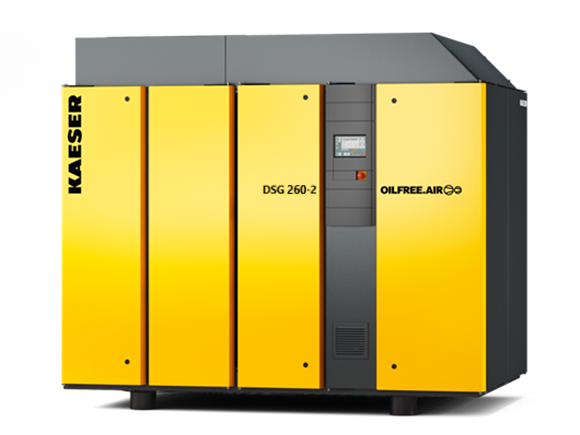

HPC DSG 260-2 (160kW)

With logical component layout and exceptional attention to detail, HPC KAESER 2-stage dry-running rotary screw compressors were designed specifically with the user in mind. Needless to say, there‘s also the peace of mind that comes with HPC KAESER‘s renowned quality.



Complete unit

  • Ready for operation
  • Fully automatic
  • Silenced
  • Vibration-damped
  • Service-friendly design
  • For ambient temperatures, up to +45 °C

Airend

  • Two-stage, oil-free compression rotary screw compressor with precision gearing as per AGMA Q13/DIN-Class 5
  • 2nd compression stage uses stainless steel rotors and jacket cooling
  • Rotors feature durable coating
  • Integrated oil tank with oil tank ventilation
  • Fibre-free pulse dampers downstream of both compression stages

Drive motor

  • Internationally renowned SIEMENS manufacture
  • Premium and Super Premium Efficiency Motor
  • Continuous monitoring of motor winding temperature
  • Enclosure protection: IP 55

Cooling

  • Separate shell and tube heat exchangers consisting of coated steel jacket and CuNi10Fe pipes
  • Copper-soldered plate-type heat exchanger as gear oil cooler

Electrical components

  • Control cabinet to IP 54
  • Switching cabinet ventilation
  • Automatic star-delta protection combination
  • Control transformer

SIGMA CONTROL 2

  • Plain text display
  • 30 selectable languages
  • Soft-touch keys with icons
  • Traffic-light LEDs for at-a-glance operational status
  • Fully automatic monitoring and control
  • Dual, Quadro, Vario and Continuous control modes available as standard options
  • Interfaces: Ethernet
  • Optional communication modules for Profibus DP, Modbus, Profinet and DeviceNet
  • SD-card slot for data logging and updates
  • RFID reader
  • Web server

}
