Compressor Hire Available

air compressor and compressed air hire in London, bedfordshire, Cambridgeshire, essex, Hertfordshire, Norfolk, Suffolk, derbyshire, lincolnshire, Gloucestershire, Leicestershire, Northamptonshire, nottinghamshire, Sussex, oxfordshire, surrey. We are also offering compressed air dryer hire, dental compressor hire and mobile compressor rental

Models

Fixed Speed

CSD 85 | CSD 105 | CSD 125

Variable Speed

CSD 85 SFC | CSD 105 SFC | CSD 125 SFC

Integral Dryer (T Version)

Fixed Speed

CSD 85T | CSD 105T | CSD 125T

Variable Speed

CSD 85T SFC | CSD 105T SFC | CSD 125T SFC

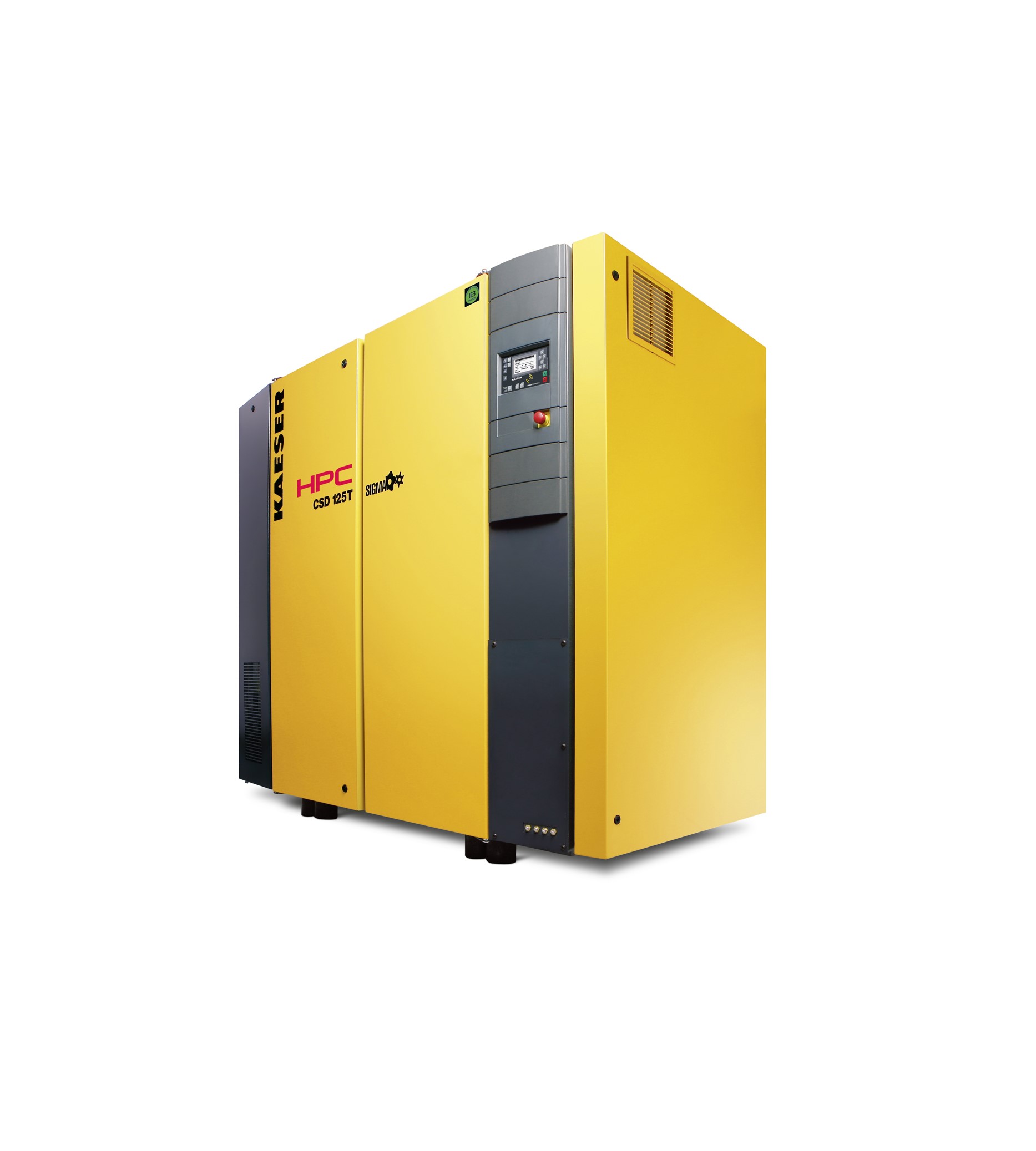

CSD 105T

At the heart of each HPC CSD series direct drive rotary screw air compressor complete with integral dryer is the specially designed airend with flow-optimised Sigma Profile rotors delivering more compressed air for less energy consumption. The efficiency of the airend is further complimented by a highly effective cooling system with dual-flow fan. This innovative design not only enhances cooling performance, but also minimises sound emissions. Furthermore, separate intake of motor-cooling air and air for compression from the ambient surroundings ensures optimum motor cooling and increased compression performance.



"HPC Air Compressors Come Complete With A Fully Inclusive 5 Year 'No Quibble' Parts & Labour Warranty"

The HPC CSD series rotary screw compressors are the perfect partners for high efficiency industrial compressed air stations. The internal SIGMA CONTROL 2 compressor controller offers numerous communication channels, which allows seamless connection with advanced master controllers, such as KAESER’s SIGMA AIR MANAGER, and in-house centralised control systems. This enables simple set-up and achieves unprecedented levels of efficiency.



The distinctive and eye-catching design of the HPC CSD series from the outside is complemented by intelligent component layout on the inside for even greater energy efficiency: All service and maintenance points are within easy reach and directly accessible. This saves both time and money when it comes to servicing.



Complete unit

  • Ready for operation
  • Fully automatic
  • Super sound-proofed
  • Vibration-damped
  • All panels powder-coated
  • For ambient temperatures up to +45 °C
  • Service-friendly design: Motor bearing lubrication from the outside (also fan motor)

Airend

  • Single stage with cooling fluid injection for optimal rotor cooling
  • Genuine KAESER rotary screw airend with the SIGMA Profile
  • 1:1 Direct drive

Cooling fluid and air circuit

  • Dry air intake filter with pre-filtration
  • Inlet silencer
  • Inlet and vent valves, pneumatic
  • Cooling fluid separator tank with three-stage separator system
  • Pressure relief valve
  • Minimum pressure check valve
  • Thermostatic valve and eco fluid filter in coolant circuit
  • Fluid and compressed air cooler
  • Centrifugal separator with electronically-controlled condensate drain for energy savings without pressure loss
  • Piping and centrifugal separator made from stainless steel

Electrical components

  • Premium Efficiency IE4 drive motor with Pt100 winding temperature transducer for motor monitoring
  • Control cabinet to IP 54
  • Switching cabinet ventilation
  • Automatic star-delta starter
  • Overload relays
  • Control transformer
  • SFC versions also with frequency converter

SIGMA CONTROL 2

  • "Traffic-light" LED indicators show operational status at a glance
  • Plain text display
  • 30 selectable languages
  • Soft-touch keys with icons
  • Fully automated monitoring and control
  • Selection of Dual, Quadro, Vario and Continuous control as standard
  • Interfaces: Ethernet
  • Additional optional communications modules for: Profibus DP, Modbus, Profinet and DeviceNet
  • SD-card slot for data-logging and updates
  • RFID reader
  • Web server

}
