Models

Fixed Speed

HSD 662 | HSD 722 | HSD 782HSD 842

Variable Speed

HSD 722 SFC | HSD 782 SFCHSD 842 SFC

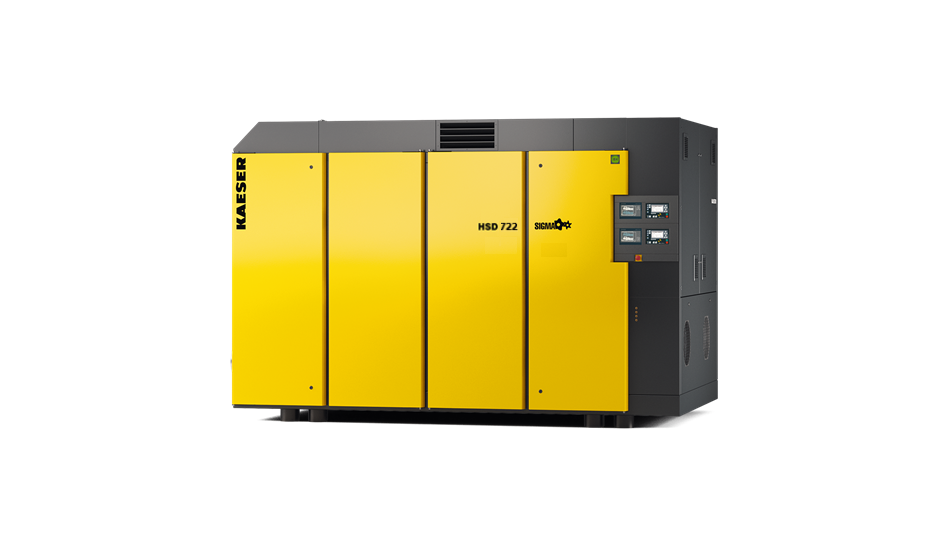

HPC HSD722

At the heart of each HPC HSD series, twin motor direct drive rotary screw air compressor is the specially designed airend with flow-optimised Sigma Profile rotors delivering more compressed air for less energy consumption. The efficiency of the airend is further complimented by a highly effective cooling system with dual-flow fan. This innovative design not only enhances cooling performance, but also minimises sound emissions. Furthermore, separate intake of motor-cooling air and air for compression from the ambient surroundings ensures optimum motor cooling and increased compression performance.



"HPC Air Compressors Come Complete With A Fully Inclusive 5 Year 'No Quibble' Parts & Labour Warranty"

The HPC HSD series rotary screw compressors are the perfect partners for high efficiency industrial compressed air stations. The internal SIGMA CONTROL 2 compressor controller offers numerous communication channels, which allows seamless connection with advanced master controllers, such as KAESER’s SIGMA AIR MANAGER, and in-house centralised control systems. This enables simple set-up and achieves unprecedented levels of efficiency.



The distinctive and eye-catching design of the HPC HSD series from the outside is complemented by intelligent component layout on the inside for even greater energy efficiency: All service and maintenance points are within easy reach and directly accessible. This saves both time and money when it comes to servicing



Complete unit

  • Ready for operation
  • Fully automatic
  • Super sound-proofed
  • Vibration-damped
  • All panels powder-coated
  • For ambient temperatures up to +45 °C
  • Service-friendly design: Motor bearing lubrication from the outside

Airend

  • Single stage with cooling fluid injection for optimal rotor cooling
  • Genuine KAESER rotary screw airend with energy-saving SIGMA profile
  • 1:1 Direct drive

Cooling fluid and air circuit

  • Dry air intake filter with pre-filtration
  • Inlet silencer
  • Inlet and vent valves, pneumatic
  • Cooling fluid separator tank with three-stage separator system
  • Pressure relief valve
  • Minimum pressure check valve
  • Thermostatic valve and eco fluid filter in coolant circuit
  • Fluid and compressed air cooler, water-cooled
  • Kaeser centrifugal separator with electronically-controlled condensate drain for energy savings without pressure loss
  • Piping and centrifugal separator made from stainless steel
  • Package water-cooled as standard: Fluid and compressed air aftercooler implemented as plate or optionally available tube-type heat exchanger.

Heat recovery (Option)

  • Optionally available with integrated fluid/water plate-type heat exchanger and additional fluid thermostatic valve
  • External connections

Cooling

  • Water-cooling as standard
  • Soldered plate heat exchanger
  • Machine interior ventilation via two independently controllable fans

Electrical components

  • Premium Efficiency IE4 drive motor with three Pt100 winding temperature transducers for engine monitoring
  • Control cabinet to IP 54
  • Switching cabinet ventilation
  • Automatic star-delta starter
  • Overload relays
  • Control transformer

SIGMA CONTROL 2

  • Interfaces for data communication comprising RS 232 for a modem, RS 485 for a slave compressor in base load sequencing mode
  • Profibus DP interface for data networks
  • Ergonomic control panel: Red, yellow and green LEDs show the operational state of the machine at a glance
  • Four-line plain text display
  • 30 selectable languages
  • Touch keys with icons
  • Duty cycle indicator
  • Fully automatic monitoring and regulation of airend discharge temperature; monitoring of motor current, direction of airend rotation, air filter, fluid filter and fluid separator cartridge
  • Display of performance data
  • Service intervals of primary components
  • Maintenance interval counter
  • Display of status data
  • Event memory

}
